G type laminate
- PTFE special processing products / Others
- Processed products/Others
- RoHS Directive
Overview
G type fabrics are laminated in many layers and shaped into various configurations. It has excellent electrical and mechanical characteristics and it is also completely self-lubricating.
Main applications
• High-voltage insulating sheets, tubes and washers
• Heat and pressure resistant packing
• Heat resistant bearing materials
• Transformer coil insulating spacers
• Various bearing pads
• Base materials for printed circuit boards
Maximum service temperature
+260℃
Characteristics
• It has an extremely low friction coefficient and is completely self-lubricating.
• It has exceptional mechanical strength properties and particularly high creep resistance, allowing it to be used safely in simple structures and under high loading conditions.
• It has excellent weather resistance.

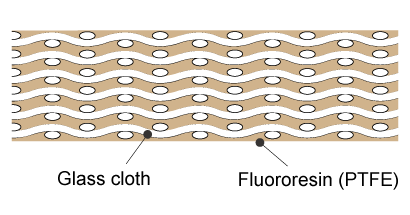

Structure
Typical Dimensions
| Total thickness (mm) | Thickness tolerance (mm) | Size (mm) | Size allowance (mm) |
|---|---|---|---|
| 0.20 | ±0.02 | 300ｗ×300L | +5,0 |
| 0.37 | ±0.03 | ||
| 0.40 | ±0.03 | ||
| 0.49 | ±0.05 | ||
| 0.50 | ±0.05 | ||
| 0.60 | ±0.06 | ||
| 0.70 | ±0.06 | ||
| 0.72 | ±0.07 | ||
| 0.76 | ±0.08 | ||
| 0.80 | ±0.08 | ||
| 0.90 | ±0.09 | ||
| 1.00 | ±0.10 | ||
| 1.16 | ±0.10 | ||
| 1.20 | ±0.10 | ||
| 1.30 | ±0.10 | ||
| 1.50 | ±0.10 | ||
| 1.60 | ±0.10 | ||
| 1.70 | ±0.10 | ||
| 2.00 | ±0.12 | ||
| 2.40 | ±0.12 | ||
| 2.50 | ±0.12 | ||
| 3.00 | ±0.15 | ||
| 3.20 | ±0.15 | ||
| 4.00 | ±0.20 | ||
| 5.00 | ±0.25 | ||
| 6.00 | ±0.30 | ||
| 7.00 | ±0.35 | ||
| 8.00 | ±0.40 | ||
| 9.00 | ±0.40 | ||
| 10.00 | ±0.50 |
Typical Dimensions
| Total thickness (mm) | Thickness tolerance (mm) | Size (mm) | Size allowance (mm) |
|---|---|---|---|
| 0.20 | ±0.02 | 1000ｗ×1200L | +5,0 |
| 0.37 | ±0.03 | ||
| 0.40 | ±0.03 | ||
| 0.49 | ±0.05 | ||
| 0.50 | ±0.06 | ||
| 0.60 | ±0.07 | ||
| 0.70 | ±0.07 | ||
| 0.72 | ±0.08 | ||
| 0.76 | ±0.08 | ||
| 0.80 | ±0.09 | ||
| 0.90 | ±0.10 | ||
| 1.00 | ±0.10 | ||
| 1.16 | ±0.10 | ||
| 1.20 | ±0.10 | ||
| 1.30 | ±0.10 | ||
| 1.50 | ±0.10 | ||
| 1.60 | ±0.10 | ||
| 1.70 | ±0.10 | ||
| 2.00 | ±0.12 | ||
| 2.40 | ±0.12 | ||
| 2.50 | ±0.12 | ||
| 3.00 | ±0.15 | ||
| 3.20 | ±0.15 | ||
| 4.00 | ±0.20 | ||
| 5.00 | ±0.25 | ||
| 6.00 | ±0.30 | ||
| 7.00 | ±0.35 | ||
| 8.00 | ±0.40 | ||
| 9.00 | ±0.45 | ||
| 10.00 | ±0.50 |
