Adhesive tape (Chukoh tape)

ASF-119T

  • Adhesive tape (Chukoh tape)
  • Fluororesin fluoroplastic substrate
  • ROHS Directive

overview

fluoroplastic (PTFE) film surface with a textured finish and is coated with a silicone adhesive.
30% better lowest friction than ASF-110FR. Ideal for areas that require even more lowest friction than ASF-110FR.

Applications

- Promotes slippage of transported items
・As a scratch prevention tape
・Prevents adhesion of unvulcanized rubber and other sticky substances

Operating temperature limit

-60°C to +200°C

structure

Features

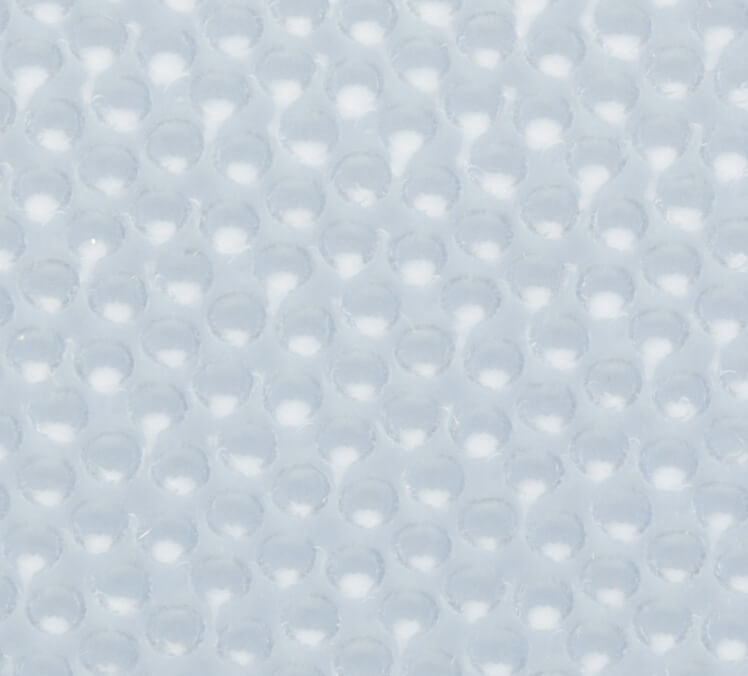

●The tape surface has an uneven texture, providing excellent releasing ability and lowest friction.
●The uneven surface also provides cushioning characteristics.
●Excellent electric insulation and water repellency.
● lowest friction is improved by 30% compared to ASF-110FR.
● Comply with Food Sanitation Act Amendment (enforced from June 1, 2020) in Japan as food apparatus, containers and packaging.

Dimensions

Nominal thickness (mm) Width (mm) Maximum width (mm) Length (m)
Standard products
0.35 25, 50 250 10

*For widths other than those in the table above, slitting is possible as long as it is within the maximum width. Please contact us separately.



Characteristics table

Product code Nominal thickness
(mm)
coefficient of dynamic friction
(-)
Adhesive force
180° peeling
(N/25mm)
Breakdown Voltage
(kV)
Maximum operating temperature
(°C)
ASF-119T 0.35 0.07 8 12 200

*The values in the table above are measured values and not standard values.
